3000mm Horizontal CNC Foam Cutting Machine Slitter Digital Control

3000mm Horizontal CNC Foam Cutting Machine Slitter Digital Control

  • High Light

    3000mm Horizontal Foam Cutting Machine

    ,

    Horizontal Foam Cutting Machine 2000mM

    ,

    Horizontal Foam Slitter Digital Control 3000mm

  • Product Name
    Horizontal Foam CNC Cutting Machine
  • Control System
    Computerized CNC
  • Cutting Accuracy
    High
  • Cutting Speed
    3.5R/MIN
  • Material
    PU Foam, Etc
  • Power Supply
    Electric
  • Product Name
    CNC Foam Cutting Machine
  • Software
    CNC Control Software
  • Voltage
    380V
  • Cutting Thickness
    2~150MM
  • Dimensions
    OVERALL 8000*7000*2400MM
  • Weight
    4000KG
  • Place of Origin
    QINGDAO, CHINA
  • Brand Name
    XINMEI
  • Certification
    CE
  • Model Number
    TDP-70
  • Minimum Order Quantity
    one set
  • Price
    inquiry
  • Packaging Details
    foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need
  • Delivery Time
    35 working days after receiving down payment
  • Payment Terms
    Western Union, L/C, T/T
  • Supply Ability
    2 sets per month

3000mm Horizontal CNC Foam Cutting Machine Slitter Digital Control

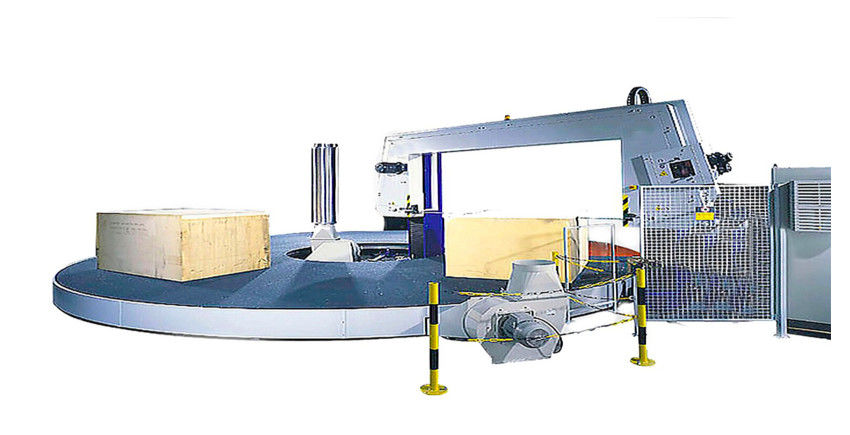

TDP-70 Foam disc flat cutting machine





Model TDP-70
Circumference of the blade 10000mm
Cut-flow size 2000x3000mm
Slice thickness 2-150mm
Knife thickness 15mm
Work turntable speed 0~3.5 r/min
Power of motor 22kW
Machine weight 4000kg
Machine dimensions 8000x7000x2400mm
This machine adopts the most advanced imported frequency conversion speed control technology drive, digital control, high reliability and accurate cutting. This machine is mainly used for the one-time horizontal slicing work of multiple square bubble wool, continuous cutting, no need to retreat the knife, higher production efficiency.
