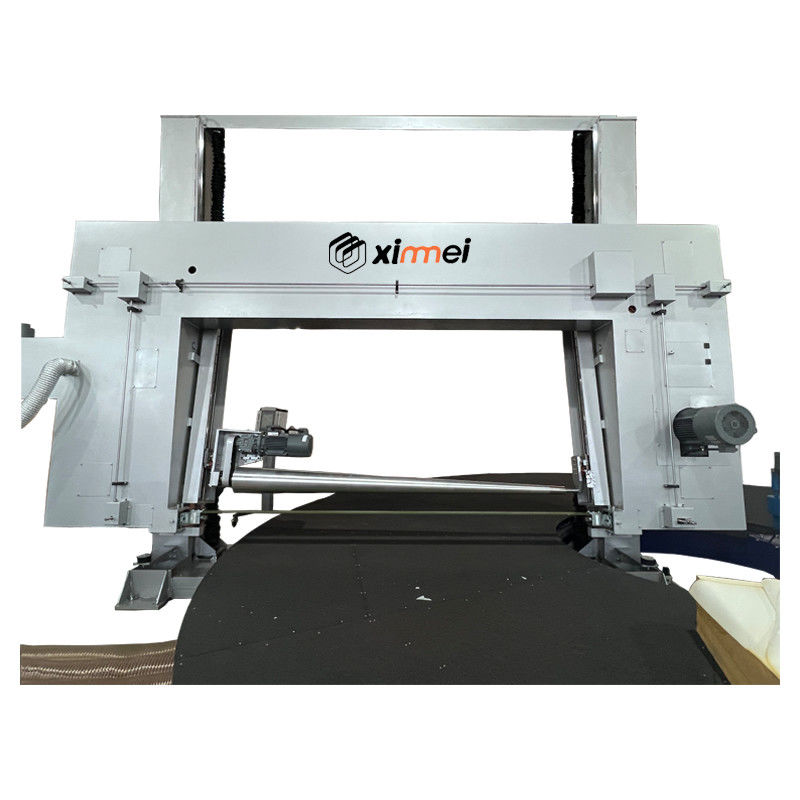

C-618 Cutting-edge Carousel horizontal splitting machine (with pressure roller)
C-618 Cutting-edge Carousel horizontal splitting machine (with pressure roller)
This machine features a gear ring structure and frequency conversion drive for smooth, quiet operation. The knife holder and wheels are made of high-strength alloy steel with a hardness above HRC60, providing strong wear resistance. The band knife adjustment system includes an automatic top knife and blade sharpening device, both with automatic and manual modes. The anti-skid platform with air absorption ensures precise cutting on a high-end disk machine, allowing for higher cutting hardness.
Overview
| Worktable diameter |
φ7200mm |
| Cutting size |
2000*2000*1300mm(One time 4 blocks cut available) |
| 3000*2000*1300mm(One time 3 blocks cut available) |
| Cutting thickness |
1-300mm |
| Cutting density |
Original sponge within 70 density |
| Rebond sponge within 160 density |
| Cutting hardness |
Within 100° |
| Cutting tolerance |
1-5mm±0.1mm ; 30-50mm±0.5mm |
| Worktable rotation speed |
0-5 rpm |
| Motor power |
42.5kw |
| Machine weight |
12T |
| Machine overall dimension |
9000*7200*4200mm |
In response to the issue of previous Chinese same catagory models being unable to cut hard sponge, this machine can perform high-speed, stable cutting with high precision, completing the simultaneous cutting of a large number of sponge blocks at the same time.
CONFIGURATION
Ball screw : Taiwan Hiwin
Bearing : Japan NSK or Sweden SKF
Pneumatic components : Taiwan Airtac
Siemens touchscreen + Siemens PLC + Siemens servo motor or Delta
Worktable : sand paper surface vacuum suction
Linear guide : Taiwan hiwin or Japan THK
Electric+Automatic When cutting with the roller , the gantry descends and the pressure roller automatically rises.
Auto knife grinding,wheel auto cleaning,with fireproof dust collector
Shipping
Successful Project
FAQ
・The brand name of this machine is Xinmei.
・The model number of this machine is C517 manufactured in Qingdao, China.
・The payment terms for this machine are TT and L/C.
・The delivery time for this machine is 80 days after receiving the agreed deposit.
・Packaging Solutions Overview
We offer a range of packaging solutions including:
- Plywood Boxes
- PVC Stretch Film
- EPE Pearl Cotton Film
Our packaging is specifically designed to be suitable for container shipping, ensuring your products are well-protected during transit.
・Installation and Support
We provide comprehensive guidance for installation and commissioning. Should you require local assistance, we are available to help without any issues.
・Our Commitment
We adhere to the principles of:
- Quality First
- Reasonable Pricing
- After-Sales Warranty
